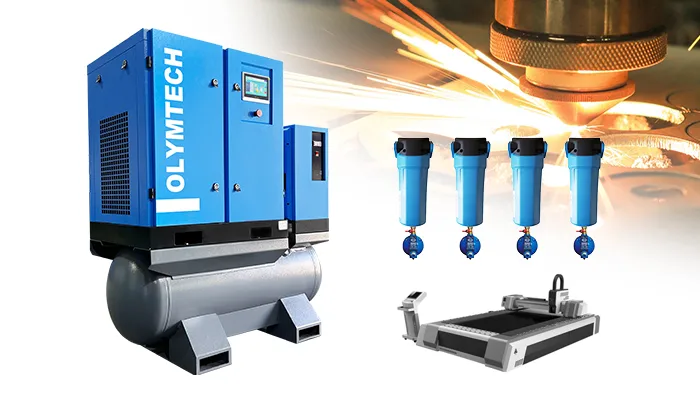

JCTG-15 Series 4IN1 Screw Air Compressor
The JCTG Series is a 15-bar tank-mounted VSD permanent magnet screw compressor specially designed for laser cutting applications. Its 4-in-1 design integrates a screw compressor, air receiver tank, refrigerated air dryer and inline air filters into one compact system, simplifying installation and saving valuable floor space. Designed for 100% duty-cycle operation, the JCTG Series delivers reliable performance, high energy efficiency and low operating noise for laser cutting application
Inquiry
Benefits

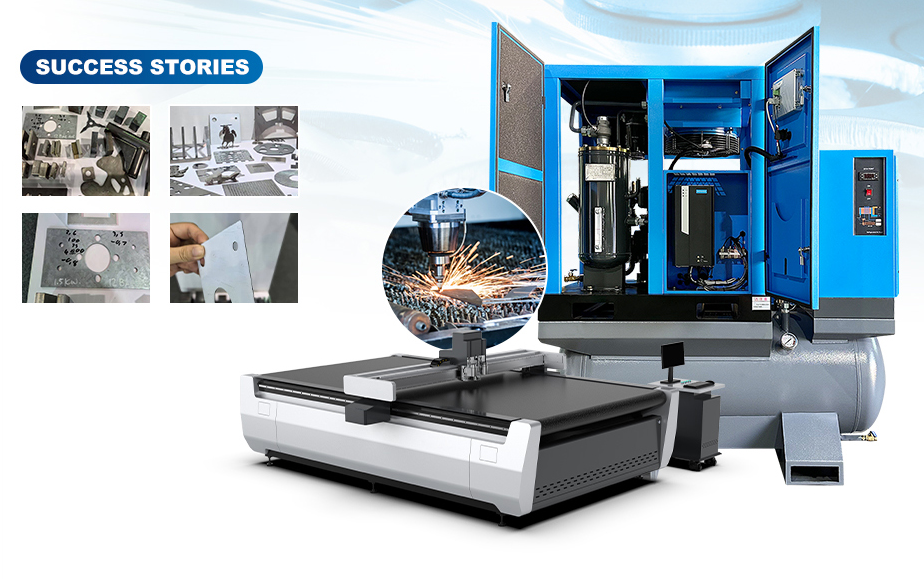

1. 4-in-1 Integrated Design
· Saves installation space and simplifies system setup, reducing the complexity of equipment selection and installation
Recommended Configuration
· 1,000–5,000W laser machines: 15 kW compressor
· 6,000–12,000W laser machines: 22 kW compressor
2. Colorful touchscreen
· Real-time display of operating status and key parameters
· Makes daily monitoring simple and efficient
3. Inovance Inverter
· Fast response helps maintain stable air pressure during cutting
· Reduces energy consumption and operating noise
4. High-Efficiency Air-end
· Stable air pressure with low operating noise
· Lower energy consumption and maintenance requirements
5. Integrated Air Treatment
· Italian-made inline filters help remove impurities
· Helps protect laser cutting equipment and maintain reliable operation
Technical Parameter
| Model | Max Working Pressure |
Capacity | Capacity | Motor Power | Air Tank Capacity |
Connection | Net Weight |
Gross Weight |
Dimension (L*W*H) |
Wooden Dimension (L*W*H) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| -- | bar | psig | m 3 /min | m 3 /min | hp | kw | L | inch | kgs | kgs | mm | mm |
| J11CTG-15 | 15 | 217 | 1.00 | 35 | 15 | 11 | 400 | G3/4” | 510 | 570 | 1850*950*1870 | 2020*1150*2040 |
| J15CTG-15 | 15 | 217 | 1.60 | 56 | 20 | 15 | 400 | G3/4” | 510 | 570 | 1850*950*1870 | 2020*1150*2040 |
| J22CTG-15 | 15 | 217 | 2.30 | 81 | 30 | 22 | 400 | G1” | 555 | 615 | 1850*950*1870 | 2020*1150*2040 |
Video
Download Case
Screw Air compressors are used widely across all industries. Such as automotive, brewing, food packaging, aerospace, construction, and more. Stationary screw compressors are the optimal choice for large industrial applications with a continuous air demand.
