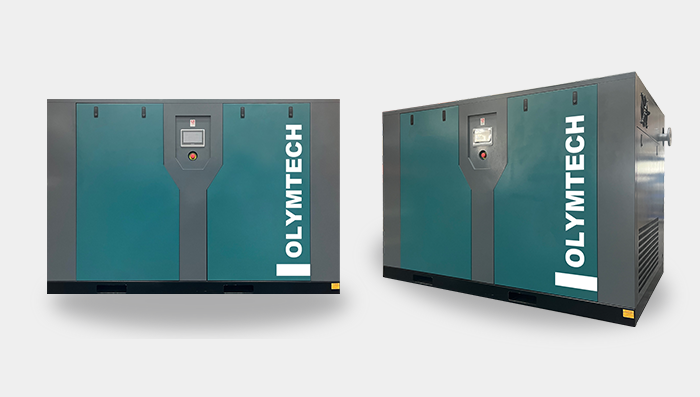

2S Series Two Stage Oil-Cooled PM VSD Screw Air Compressor
The Olymtech 2S Series is engineered for workshops where heat, dust, continuous production, and changing air demand are daily realities. By combining efficient compression, intelligent control, enhanced cooling, and reliable filtration, it provides a practical compressed air solution for manufacturers seeking lower operating costs, stable production, and long-term reliability.
Inquiry
Benefits

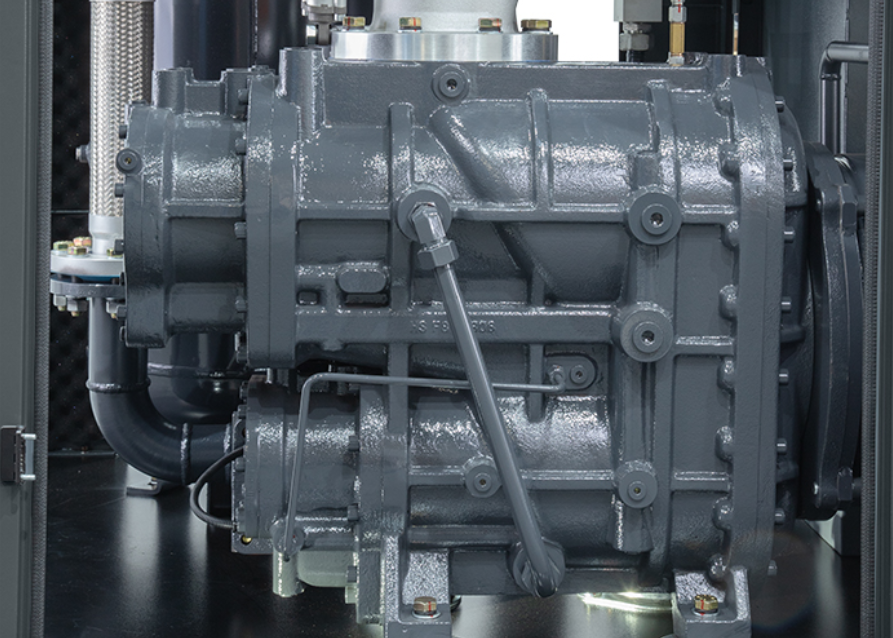

1.Two-Stage Compression for Higher Efficiency
· Combined with an IE5 oil-cooled PM motor and VSD technology, the system helps reduce energy consumption under demanding operating conditions

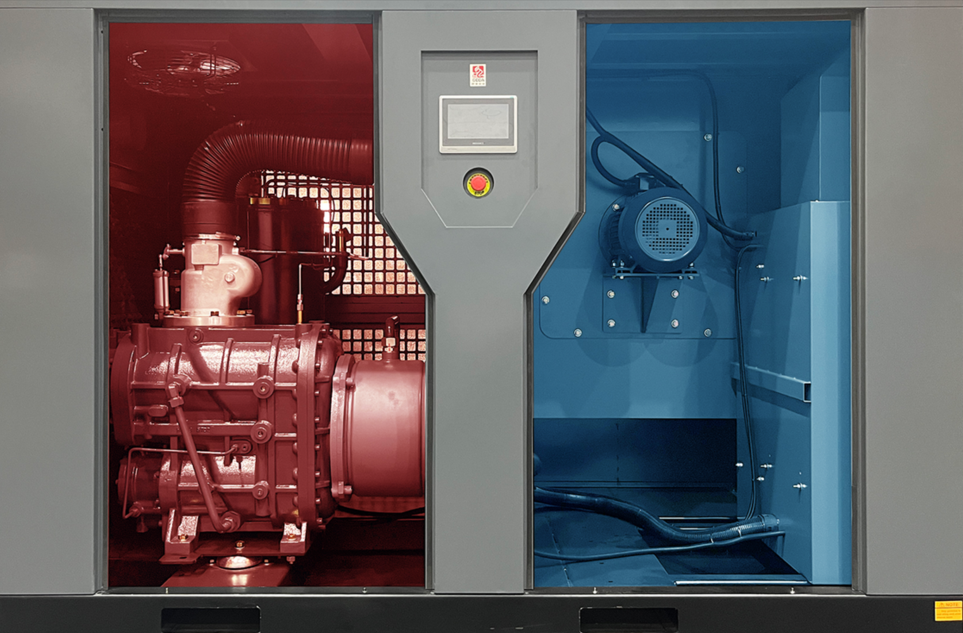

2.Enhanced Thermal Management & Protection
· Centrifugal fan provides higher airflow and stronger cooling performance with lower noise
· Independent inverter cooling duct enhances heat dissipation in high-temperature environments

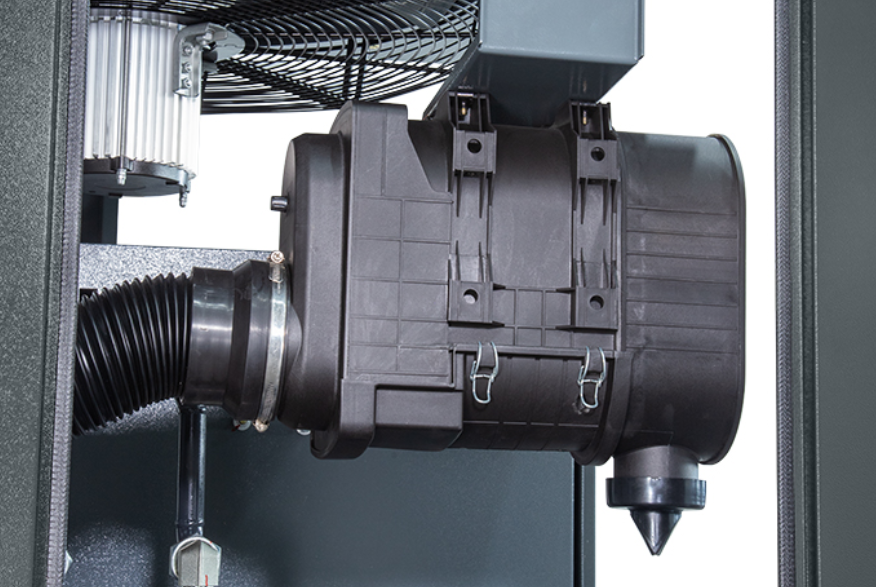

3. High-Efficiency Air Intake & Easy Maintenance
· Clip-on design enables quick installation and replacement, simplifying routine maintenance

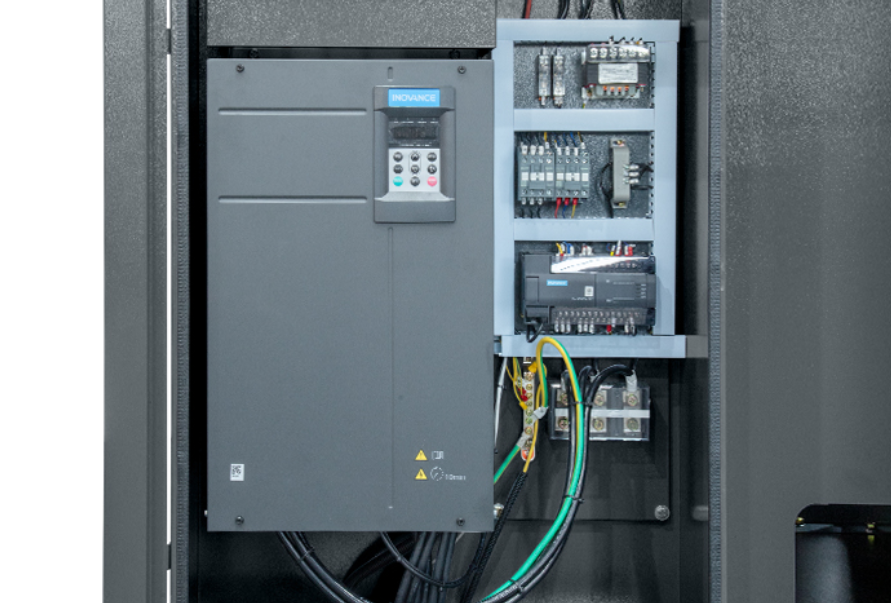

4. Intelligent Air Supply Control
· Color touchscreen provides real-time operating status, multiple operating modes, and intuitive system control
Technical Parameter
| Model |
Max Working Pressure |
Capacity |
Motor Power |
Connection |
Hot Air Discharge |
Net Weight |
Dimension (L*W*H) |
||
| -- | bar | psig | m 3 /min | hp | kw | inch | -- | kgs | mm |
| S7.5-8 | 8 | 116 | 1.10 | 10 | 7.5 | G1/2" | TOP | 170 | 945*600*1035 |
| S7.5-10 | 10 | 145 | 1.00 | ||||||
| S11-8 | 8 | 116 | 1.60 | 15 | 11 | G1" | SIDE | 300 | 1280*800*1385 |
| S11-10 | 10 | 145 | 1.40 | ||||||
| S15-8 | 8 | 116 | 2.60 | 20 | 15 | G1" | SIDE | 315 | 1280*800*1385 |
| S15-10 | 10 | 145 | 2.20 | ||||||
| S22-8 | 8 | 116 | 3.60 | 30 | 22 | G1" | SIDE | 340 | 1280*800*1385 |
| S22-10 | 10 | 145 | 3.20 | ||||||
| S30-8 | 8 | 116 | 5.00 | 40 | 30 | G1-1/2" | SIDE | 495 | 1440*900*1675 |
| S30-10 | 10 | 145 | 4.40 | ||||||
| S37-8 | 8 | 116 | 6.50 | 50 | 37 | G1-1/2" | SIDE | 510 | 1440*900*1675 |
| S37-10 | 10 | 145 | 5.60 | ||||||
| S45-8 | 8 | 116 | 7.60 | 60 | 45 | G1-1/2" | TOP | 540 | 1280*980*1350 |
| S45-10 | 10 | 145 | 6.90 | ||||||
| S55-8 | 8 | 116 | 10.20 | 75 | 55 | G2" | TOP | 930 | 1580*1160*1600 |
| S55-10 | 10 | 145 | 9.00 | ||||||
| S75-8 | 8 | 116 | 13.60 | 100 | 75 | G2" | TOP | 950 | 1580*1160*1600 |
| S75-10 | 10 | 145 | 11.90 | ||||||
Video
Download
Case
Screw Air compressors are used widely across all industries. Such as automotive, brewing, food packaging, aerospace, construction, and more. Stationary screw compressors are the optimal choice for large industrial applications with a continuous air demand.
