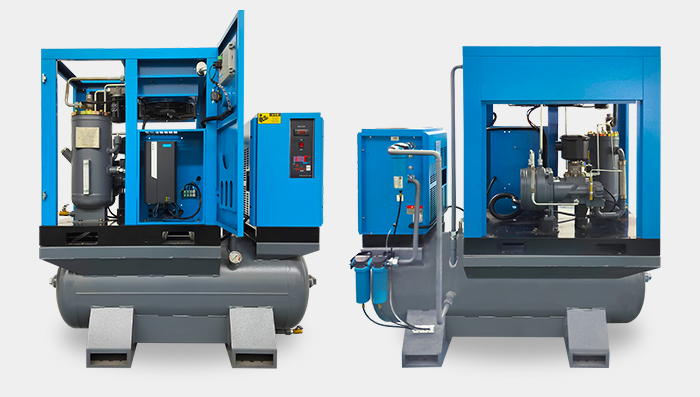

CYCTG Series Oil-Cooled PM VSD 4IN1 Screw Air Compressor
Olymtech CYCTG Series is a permanent magnet, 4-in-1 screw air compressor engineered for dust-intensive environments. Equipped with an oil-cooled motor rated IP66 and IE5 efficiency, it effectively isolates dust and moisture while maintaining full performance and reliability. Integrated with an air tank, air dryer, and line air filter, the system provides a compact, ready-to-install compressed air solution, reducing installation cost and technical complexity. It is an ideal compressed air solution for industries such as furniture, stone processing, rice milling, and wood manufacturing.
Inquiry
Product Highlights

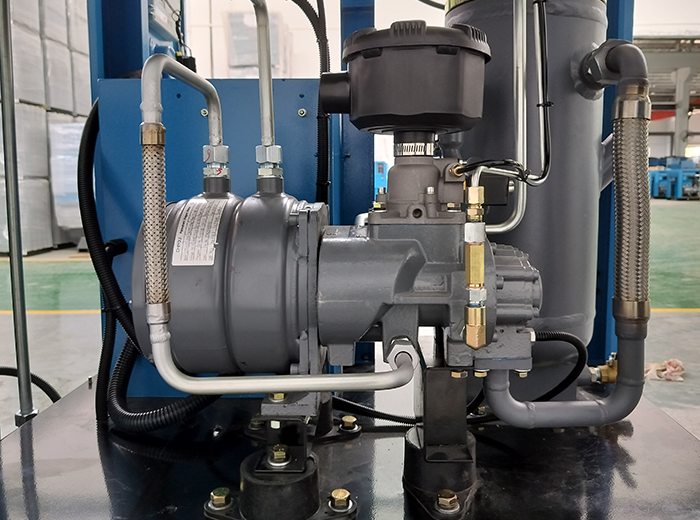

1. Dust & Water Resistant Motor
Oil-cooled, permanent magnet motor with IP66 protection and IE5 efficiency, ensuring reliable and energy-saving operation even in heavy-dust environments.
2. Demand-Based Energy Control

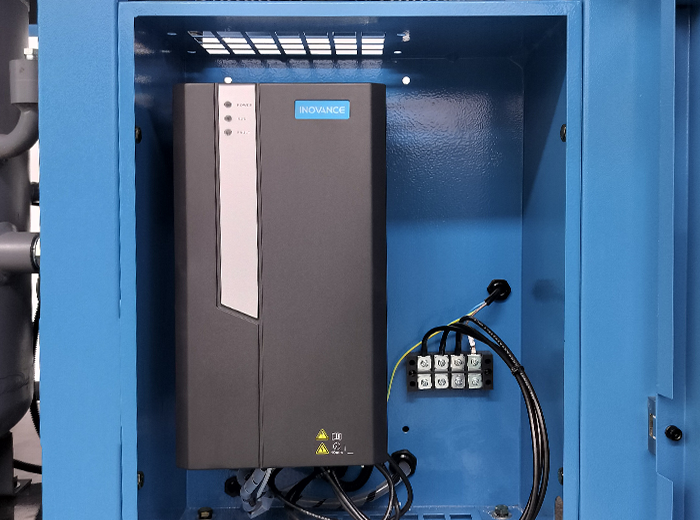

Smart inverter automatically adjusts output to match air demand, eliminating unload losses and reducing energy consumption.
3. Integrated Air Treatment

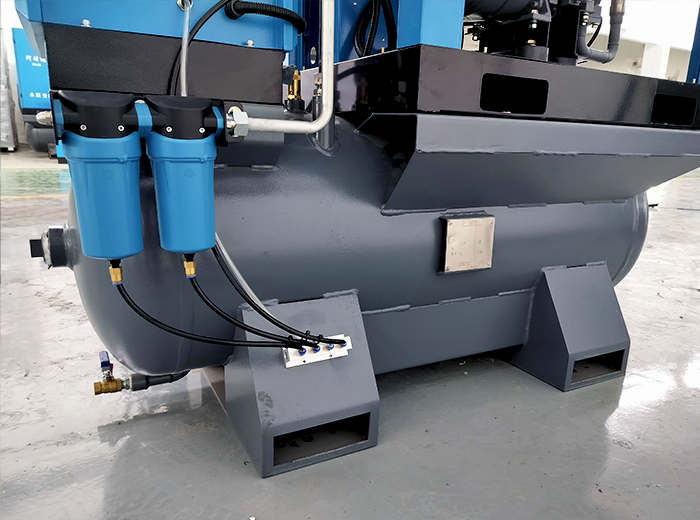

Built-in refrigerated dryer with 3–10°C pressure dew point removes up to 98% of moisture, while the 3-stage line filters remove oil, water and solid particles and the large-volume air tank provides stable storage and cooling to air.

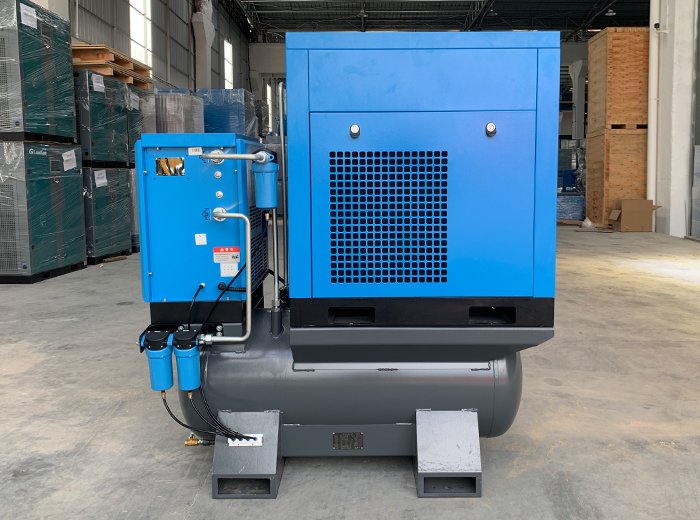

4. Compact & Low Noise Design
Fully enclosed cabinet with optimized internal layout delivers quiet operation at only 50–60dB, while saving valuable factory space.
Technical Parameter
| Model | Max Working Pressure | F.A.D | Motor Power | Air Tank Capacity | Connection | Net Weight | Dimension (L*W*H) | |||
| bar | psig | m³/min | CFM | hp | kW | L | kgs | mm | ||
| C7.5YCTG-8 | 8 | 116 | 1.10 | 38 | 10 | 7.5 | 250L | G3/4" | 350 | 1650*1000*1900 |
| C7.5YCTG-10 | 10 | 145 | 0.90 | 31 | ||||||
| C11YCTG-8 | 8 | 116 | 1.60 | 56 | 15 | 11 | 400L | G3/4" | 510 | 1930*870*2080 |
| C11YCTG-10 | 10 | 145 | 1.40 | 49 | ||||||
| C15YCTG-8 | 8 | 116 | 2.60 | 91 | 20 | 15 | 400L | G3/4" | 510 | 1930*870*2080 |
| C15YCTG-10 | 10 | 145 | 2.00 | 70 | ||||||
| C22YCTG-8 | 8 | 116 | 3.60 | 127 | 30 | 22 | 400L | G1" | 510 | 1930*870*2080 |
| C22YCTG-10 | 10 | 145 | 3.00 | 106 | ||||||
