JCTG Series 4IN1 Screw Air Compressor
The JCTG Series 4-in-1 Screw Air Compressor integrates the compressor, air receiver tank, refrigerated air dryer and inline air filters into one complete system. With air piping pre-connected before delivery and a single power connection for the compressor and dryer, the system is designed for plug-and-play installation, reducing setup time and installation costs. An integrated condensate drainage system collects and automatically discharges condensate from the air receiver, dryer and filters, keeping the installation area clean and dry while simplifying daily maintenance.
Inquiry
Benefits
1. 4-in-1 Integrated Design
· Saves installation space and simplifies system setup, reducing the complexity of equipment selection and installation.
2. Colorful touchscreen
· Real-time display of operating status and key parameters
· Makes daily monitoring simple and efficient
3. Inovance Inverter
· Fast response helps maintain stable air pressure during manufacturing
· Reduces energy consumption and operating noise
4. High-Efficiency Air-end
· Stable air pressure with low operating noise
· Lower energy consumption and maintenance requirements
5. Integrated Air Treatment
· Italian-made inline filters help remove impurities
· Helps protect manufacturing equipment and maintain reliable operation
Technical Parameter
| Model | Max Working Pressure |
Capacity | Motor Power | Air Tank Capacity |
Connection | Net Weight |
Gross Weight |
Dimension (L*W*H) |
Wooden Dimension (L*W*H) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| -- | bar | psig | m 3 /min | CFM | hp | kw | L | inch | kgs | kgs | mm | mm |
| J7.5CTG-8 | 8 | 116 | 1.10 | 38 | 10 | 7.5 | 250 | G3/4” | 350 | 450 | 1430*800*1580 | 1630*900*1660 |
| J7.5CTG-10 | 10 | 145 | 0.90 | 31 | ||||||||
| J11CTG-8 | 8 | 116 | 1.60 | 56 | 15 | 11 | 400 | G3/4” | 510 | 570 | 1850*950*1870 | 2020*1150*2040 |
| J11CTG-10 | 10 | 145 | 1.40 | 49 | ||||||||
| J15CTG-8 | 8 | 116 | 2.60 | 91 | 20 | 15 | 400 | G3/4” | 510 | 570 | 1850*950*1870 | 2020*1150*2040 |
| J15CTG-10 | 10 | 145 | 2.00 | 70 | ||||||||
| J22CTG-8 | 8 | 116 | 3.60 | 127 | 30 | 22 | 400 | G1” | 555 | 615 | 1850*950*1870 | 2020*1150*2040 |
| J22CTG-10 | 10 | 145 | 3.00 | 106 | ||||||||
Video
Download

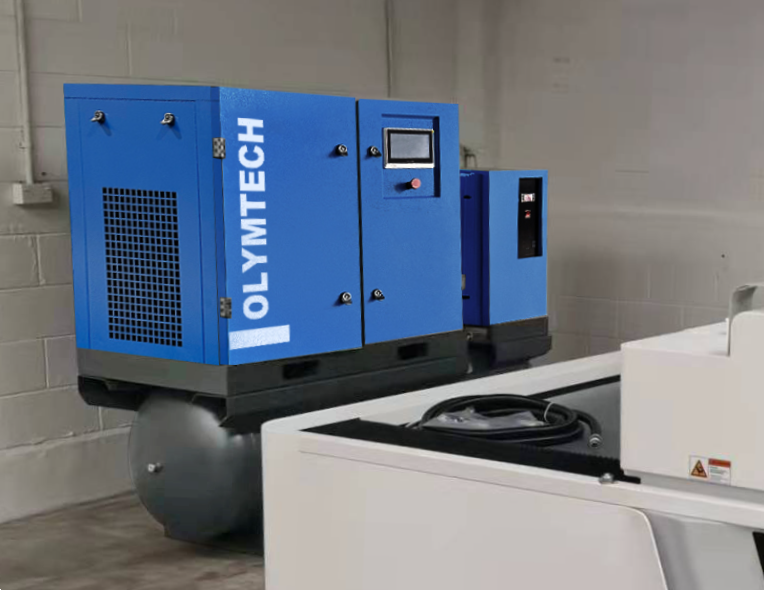

Case
