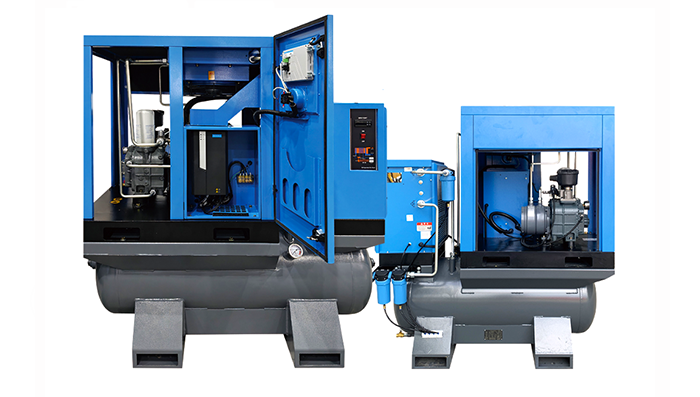

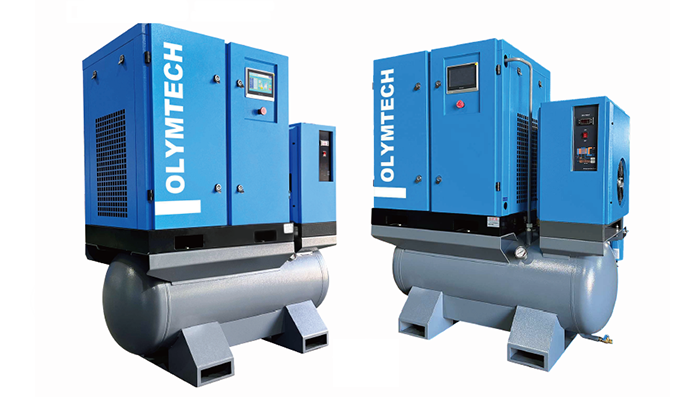

YCTG Series Oil-Cooled PM VSD 4IN1 Screw Air Compressor
The YCTG Series is an 4-in-1 compressed air solution integrating the compressor, air tank, refrigerated dryer, and precision filters into one compact system. Its integrated air-end and oil separator tank simplifies the internal structure, making routine inspection and maintenance easier while reducing installation requirements. Equipped with an IE5 high-efficiency oil-cooled permanent magnet motor, INOVANCE inverter, built-in refrigerated dryer, and 3-stage filtration system, the YCTG Series delivers clean, dry, and stable compressed air with optimized energy efficiency. Its compact, fully enclosed design also enables quiet operation and space-saving installation, making it ideal for small and medium-sized workshops.
Inquiry
Product Highlights

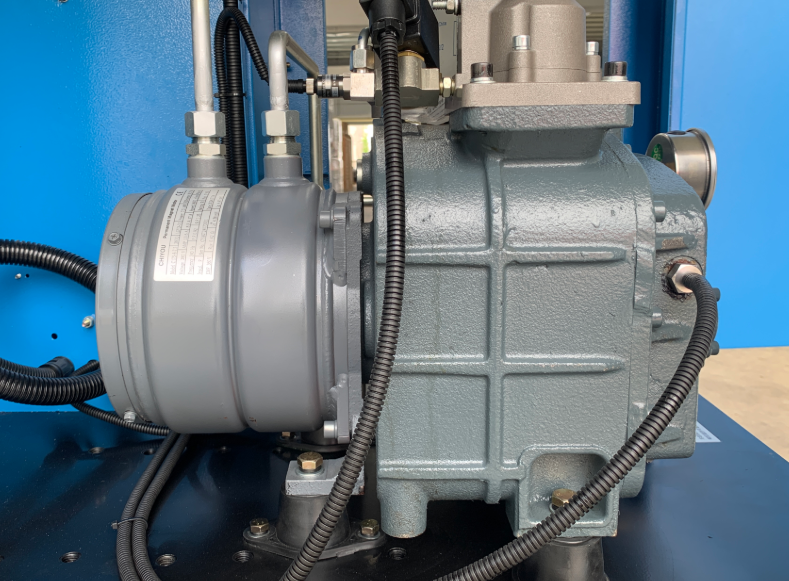

1. IE5 Oil-Cooled Permanent Magnet Motor with Integrated Oil Separator
· IP66 protection and oil-cooled design ensure reliable heat dissipation and stable operation in dusty environments· Integrated air-end and oil separator tank simplify the internal structure for easier inspection and maintenance

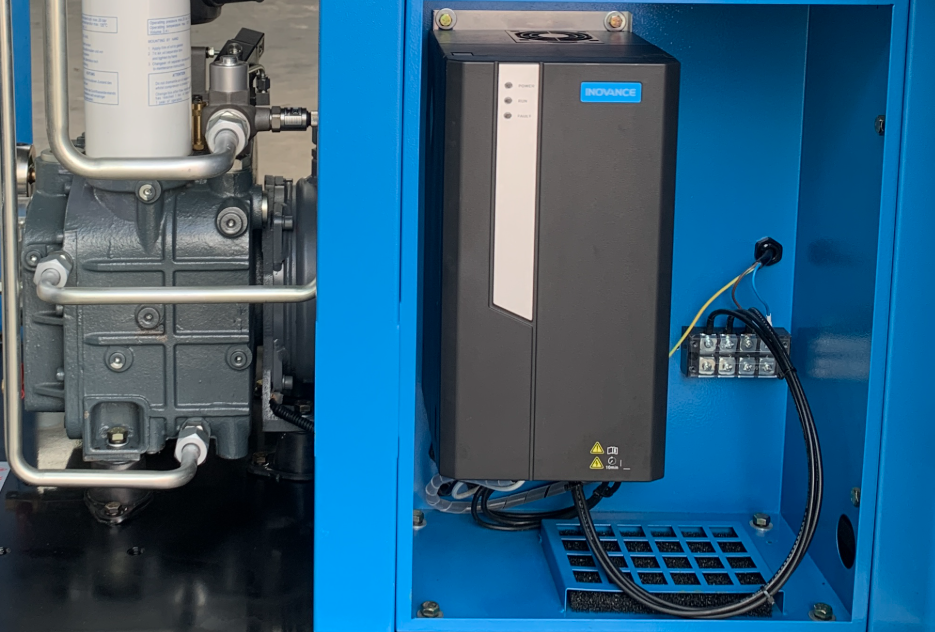

2. Intelligent INOVANCE Inverter
· Up to 35%–45% energy savings by automatically adjusting air output to match actual air demand (Actual energy savings may vary depending on operating conditions and air demand)· Reduces unnecessary unloading and helps maintain stable system pressure

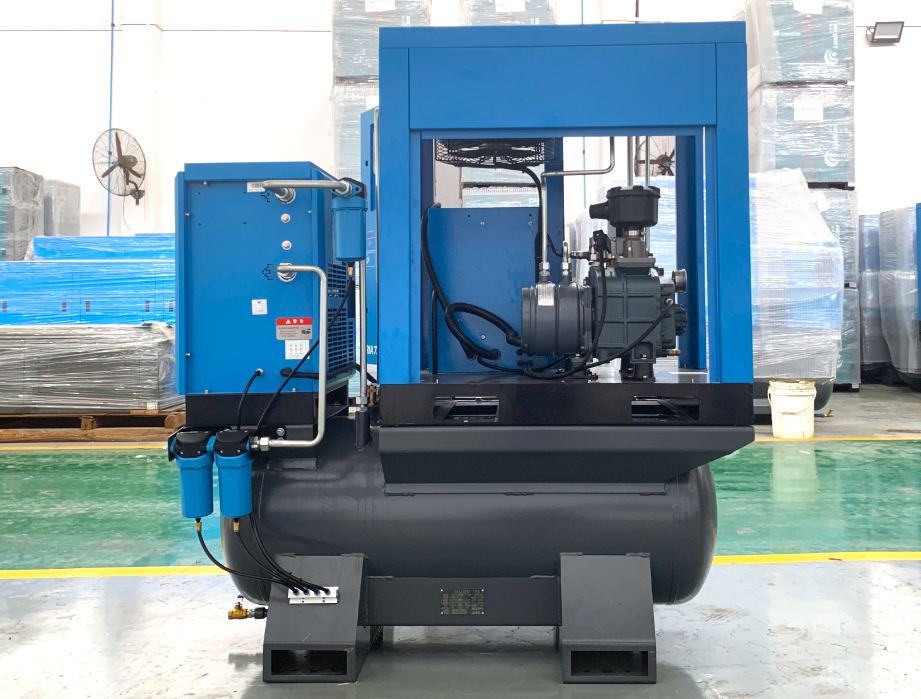

3. Integrated Air Treatment
· Built-in refrigerated dryer delivers a 3–10°C pressure dew point and removes up to 98% moisture· 3-stage filters remove oil, water, and solid particles, while the large-volume air tank provides stable air storage and additional cooling
4. Compact & Low Noise Design
· Fully enclosed structure and a compact footprint enable space-saving installation with operating noise as low as 50–60 dB· Simplified internal layout makes routine inspection and maintenance easier
Technical Parameter
| Model | Max Working Pressure | F.A.D | Motor Power | Air Tank Capacity | Connection | Net Weight | Dimension (L*W*H) | |||
| bar | psig | m³/min | CFM | hp | kW | L | kgs | mm | ||
| C7.5YCTG-8 | 8 | 116 | 1.10 | 38 | 10 | 7.5 | 250L | G3/4" | 350 | 1650*1000*1900 |
| C7.5YCTG-10 | 10 | 145 | 0.90 | 31 | ||||||
| C11YCTG-8 | 8 | 116 | 1.60 | 56 | 15 | 11 | 400L | G3/4" | 510 | 1930*870*2080 |
| C11YCTG-10 | 10 | 145 | 1.40 | 49 | ||||||
| C15YCTG-8 | 8 | 116 | 2.60 | 91 | 20 | 15 | 400L | G3/4" | 510 | 1930*870*2080 |
| C15YCTG-10 | 10 | 145 | 2.00 | 70 | ||||||
| C22YCTG-8 | 8 | 116 | 3.60 | 127 | 30 | 22 | 400L | G1" | 510 | 1930*870*2080 |
| C22YCTG-10 | 10 | 145 | 3.00 | 106 | ||||||
